Why Chemical and Materials Science Engineers Are the Unsung Heroes of Solar Innovation

For most of the solar industry’s modern history, progress has been framed as a story of physics. Higher efficiencies came from better cell architectures, improved passivation schemes, and optimization of semiconductor performance. That framing was accurate for a long time.

As photovoltaic technologies approach their theoretical efficiency limits and global manufacturing capacity reaches unprecedented scale, the next set of constraints is no longer defined by cell physics alone.

Instead, the industry’s most pressing challenges now sit squarely at the intersection of materials science, chemistry, and manufacturability. This shift has elevated a group that has long worked behind the scenes: chemical and materials science engineers.

Solar’s bottleneck is fielded durability

Over the past several years, the solar industry has undergone a massive manufacturing build-out.

Global module capacity has expanded to the point where annual manufacturing capability — now exceeding 1.5TW — significantly outpaces annual installations, with roughly 80% of that manufacturing base concentrated in China, which also leads the world in deployments.

This concentration has proven damaging to the industry’s overall economics; persistent oversupply has weighed heavily on module prices and margins, creating significant financial stress across the industry — with the resulting bankruptcies and consolidations felt most acutely among Chinese producers.

Much of this expansion has been driven by standardized, high-throughput equipment platforms that can process a solar cell in less than a second, repeated across dozens of parallel lines.

This equipment-led scaling model has been extraordinarily successful at driving down cost. It has also created a highly compressed competitive landscape.

When most manufacturers purchase similar tools from the same small set of vendors, differentiation becomes marginal.

Efficiency gains are incremental. Price competition is fierce. The room to stand apart using conventional process tweaks alone is limited.

In that environment, the question facing manufacturers is no longer simply how to make a cell slightly more efficient at the factory gate, but how to deliver superior lifetime energy yield, reliability, and bankability in the field. Those attributes depend less on throughput and more on how materials behave over decades under real-world stress.

Why materials challenges now define performance and bankability

Modern photovoltaic modules are already remarkably durable. Twenty- and even thirty-year warranties are common. But as efficiencies continue to rise, durability and performance become tightly coupled and operate with narrower margins for error.

Recent transitions within the industry illustrate this tension. The widespread shift from p-type to n-type wafers unlocked higher efficiencies and mitigated certain degradation mechanisms, such as boron-oxygen defects.

At the same time, it introduced new process complexities and sensitivities. When modules are designed to admit more light, operate at higher currents, or function under more aggressive optical conditions, latent degradation pathways are emerging.

From the customer’s perspective, these materials-level decisions matter deeply. Financing, insurance, and long-term power purchase agreements are all influenced by confidence in lifetime performance.

A fraction of a percent improvement in efficiency can command a premium, but only if it does not compromise long-term reliability. Navigating that trade-off is fundamentally a materials problem.

What materials scientists see that others miss

Materials scientists tend to evaluate solar technologies differently than process engineers or device physicists. They instinctively look for interactions across domains: how photons interact with interfaces, how polymers respond to UV exposure, how metals diffuse under thermal cycling, and how moisture finds its way into places it should not.

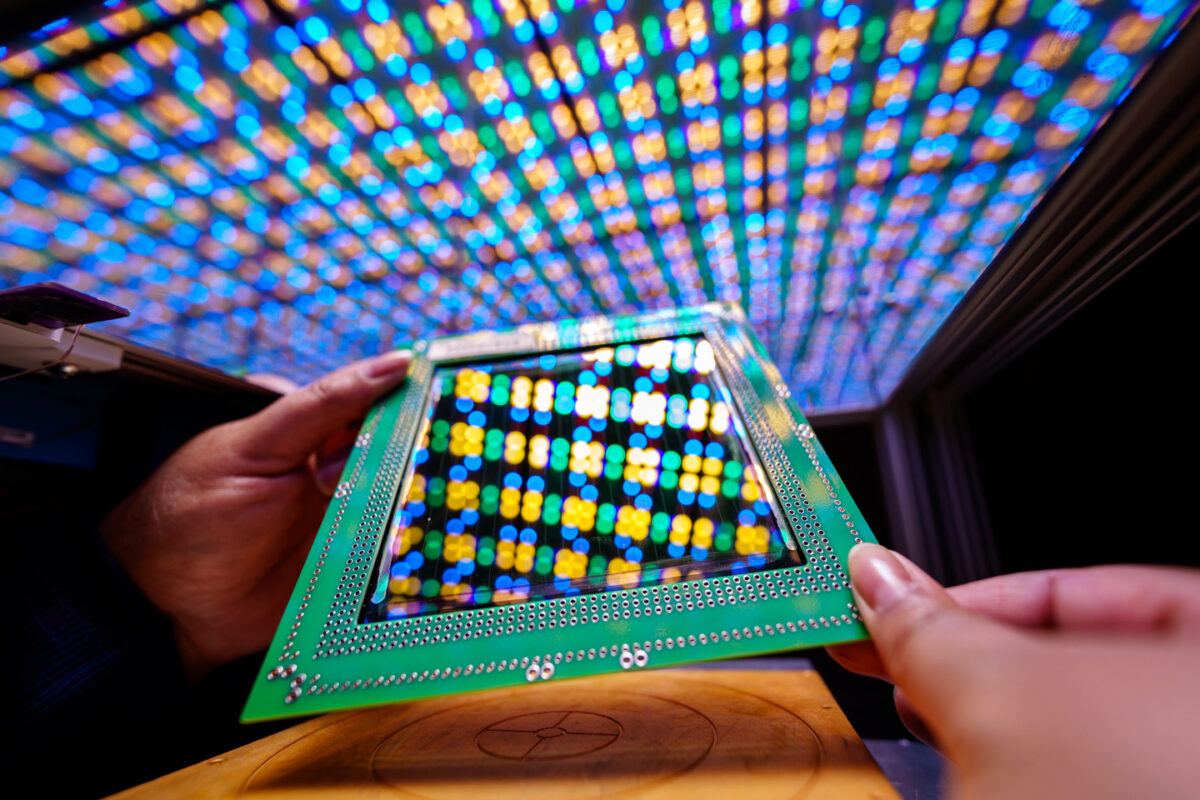

This perspective is especially relevant as the industry looks beyond single-junction devices. Tandem architectures, where two solar cells are stacked to capture different sections of the sun’s spectrum, are widely viewed as the next major efficiency leap. Perovskite-based top cells, in particular, offer exceptional tunability and performance potential.

Yet durability remains the gating factor. Perovskites are sensitive to temperature, humidity, and high-energy light. Unlocking their commercial potential requires a deep understanding of degradation pathways and protective strategies, not just impressive laboratory efficiencies. That work is materials science at its core.

From lab to line — how chemical and material engineering enables durable innovation

Bringing new materials into commercial solar products is not simply a question of whether they work in the lab. They must also be manufacturable at gigawatt scale, compatible with existing process flows, operating at low failure rates.

This is where chemical and materials engineers bridge a critical gap. Their role is to translate promising concepts into repeatable, scalable solutions. That means designing materials that deliver optical or electronic benefits while surviving high-temperature processing, mechanical stress, and long-term environmental exposure.

Consider spectral management approaches that modify how sunlight interacts with a module. When done correctly, these materials can reduce UV-driven degradation while simultaneously improving energy conversion.

Achieving that balance requires careful control over composition, interfaces, stabilization packages, and encapsulation. It is not a single-variable optimization. It is a system-level design challenge.

Why the role of chemical engineers and material scientists will only expand from here

As solar companies become more vertically integrated, materials teams are moving closer to the center of product strategy. Differentiation increasingly comes from IP-rich layers that sit on top of commodity equipment platforms. These layers are often invisible to the end user, but they have an outsized impact on performance, reliability, and cost.

Materials scientists are uniquely positioned to identify where small changes can yield large returns. A switch in metallization chemistry, for example, can reduce cost but introduce new diffusion risks that must be mitigated with barrier layers. Altering a polymer formulation can improve optical transmission while affecting fielded stability. Each decision ripples through the system.

Looking ahead, many of the most impactful innovations in solar are likely to be materials-led. Near-term opportunities include cost reduction within established silicon technologies through alternative metallization and architectural convergence. Longer term, tandem devices will demand entirely new solutions for stability and integration.

In each case, success will depend on engineers who can think across physics, chemistry, and manufacturing simultaneously. These are the unsung heroes of solar innovation. Their work may not always make headlines, but it will define how the industry evolves and grows.

Michael Burrows is Chief Commercial Officer at UbiQD, where he leads global commercial strategy and partnerships to advance innovative materials solutions for energy, agriculture, and industrial applications. He brings extensive experience scaling emerging technologies and driving market adoption across cleantech and advanced manufacturing sectors.
